Olive mill machines / Conveyor belts
Conveyor
belts,
fully enclosed.

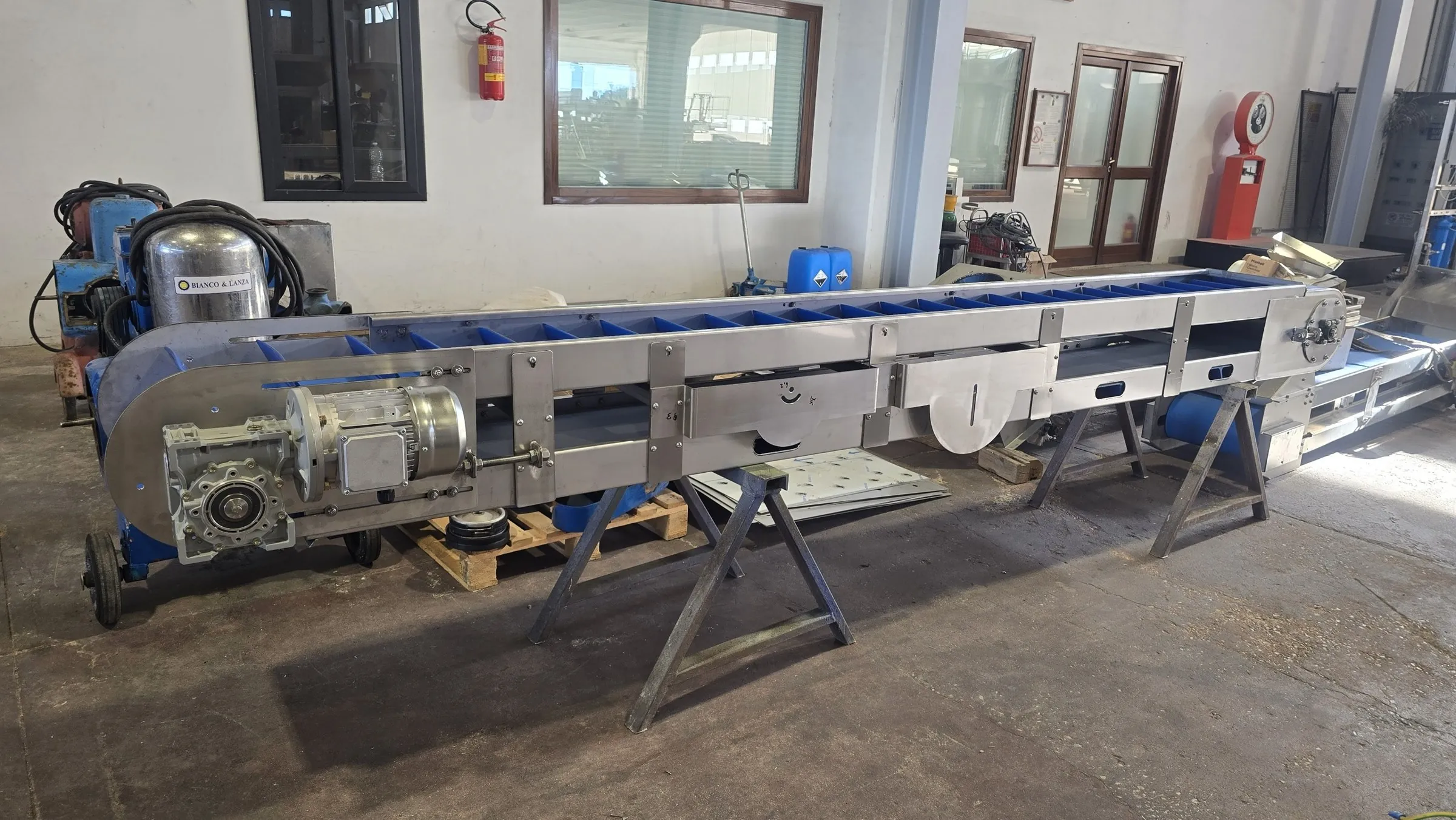

400 or 500 mm PVC belt with full-width cleats, up to 10 t/h (10,000 kg/h) and 50° incline, fully enclosed with stainless steel side walls. Rubber-lagged drive roller with side-mounted gearmotor, one tensioner at the tail and two at the head.
PVC belt400 / 500 mm
Capacity5 / 10 t/h
Inclineup to 50°
Technical data
How it is built
Two widths, same construction.
| Feature | 400 belt | 500 belt |
|---|---|---|
| Belt width | 400 mm | 500 mm |
| Capacity | 5 t/h | 10 t/h |
| Maximum incline | 50° | |
| Belt | PVC | |
| Cleats | Paddle-type, across the full belt width | |
| Structure | Fully enclosed, stainless steel side walls | |

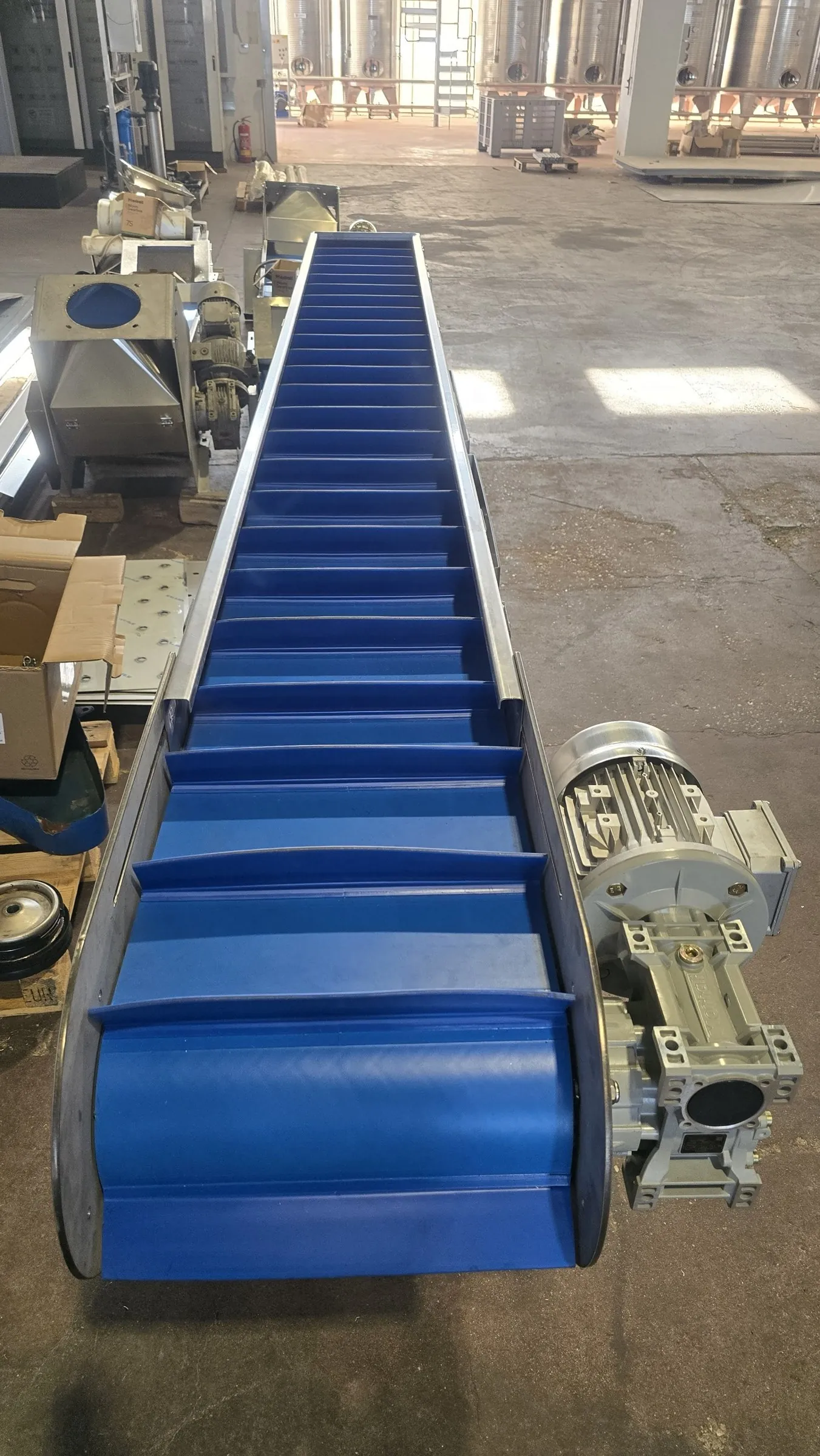

| Drive | Rubber-lagged drive roller at the head, side-mounted gearmotor | |

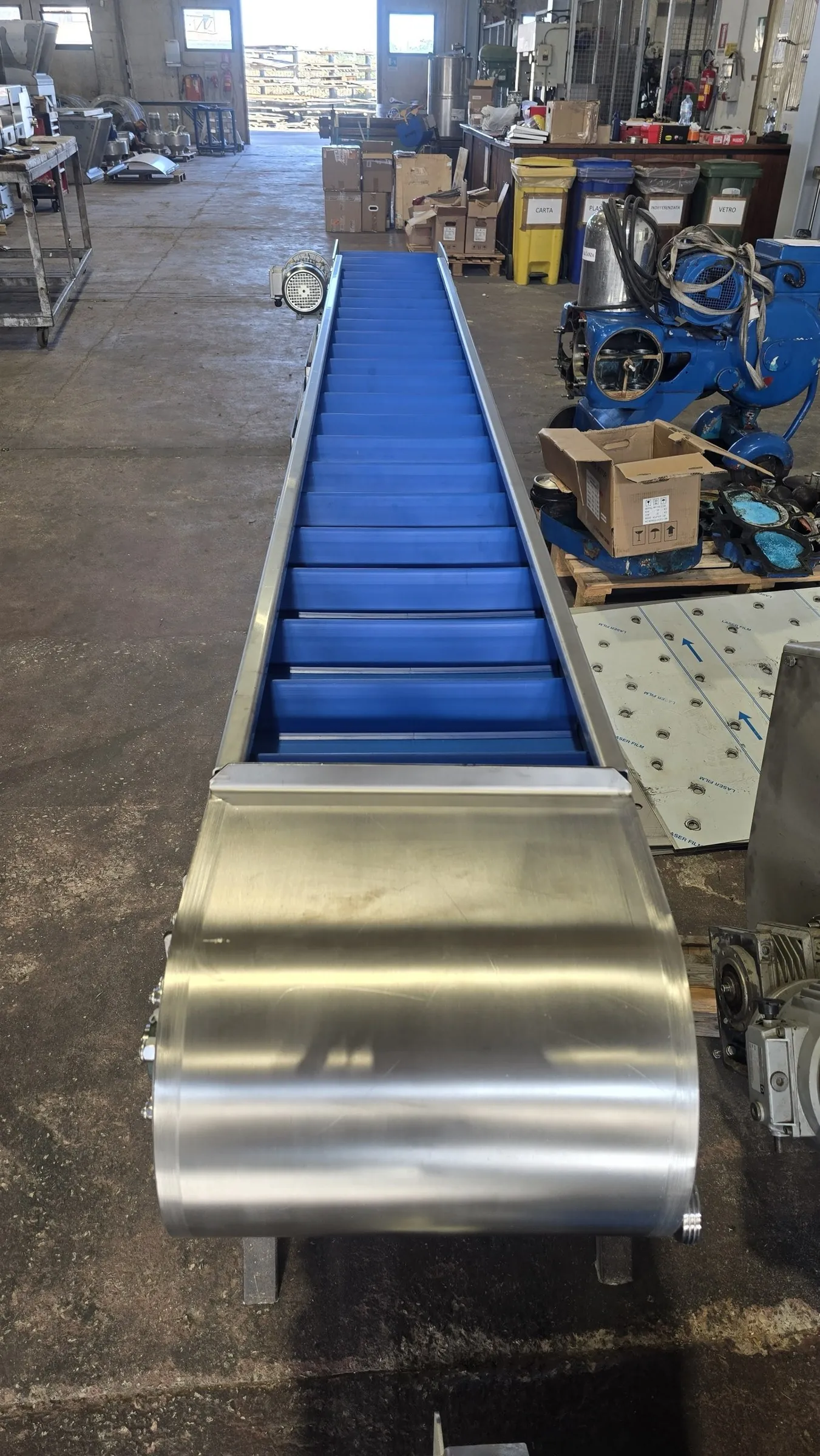

| Tensioning | One tensioner at the tail, two at the head | |
| Length | To suit your layout | |
Designed around your mill
Every conveyor is designed around the plant layout and the machines it has to connect.
- Lengthmatched to the distance between machines
- Inclinematched to the discharge height, up to 50°
- Width400 mm for 5 t/h, 500 mm for 10 t/h
- Infeedloading hopper at the tail
- Matchingsized for the leaf remover and washer
Frequently asked questions
Conveyor belts
Why a fully enclosed conveyor?
An enclosed conveyor with stainless steel side walls keeps the olives on the belt, guards the moving parts and stays cleaner.
Can they be connected to machines from other manufacturers?
Yes. We design them around the layout of your mill and the machines they need to connect.
Where do the olives need to go?
Tell us which machines the conveyor has to connect and at what height it has to discharge.
